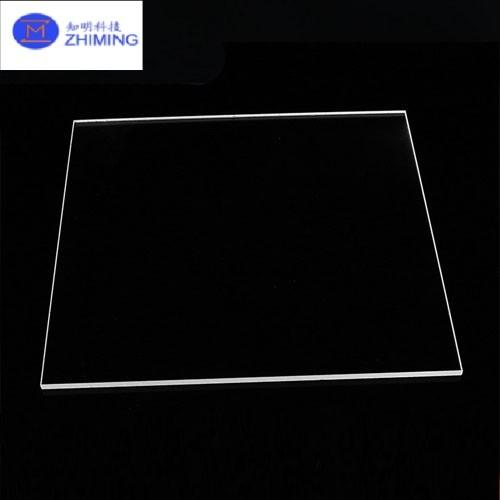

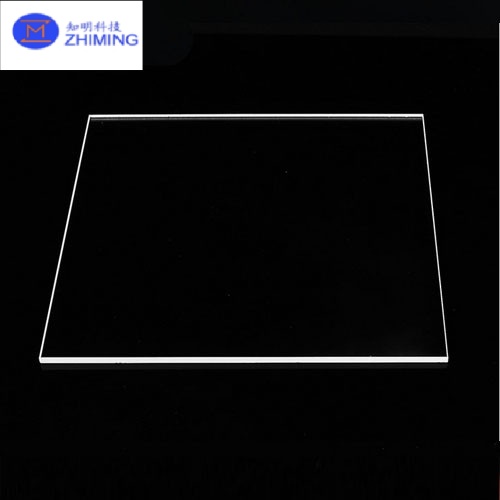

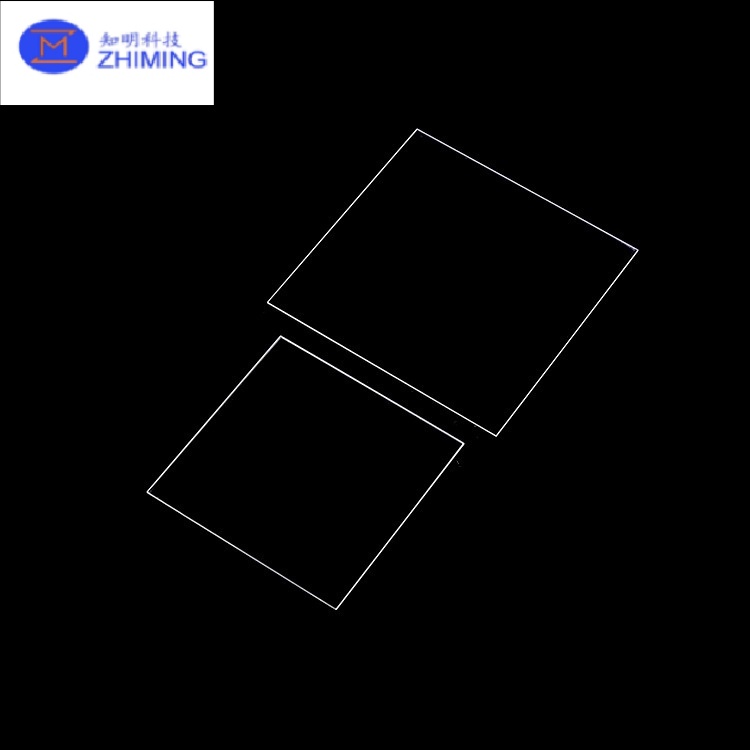

High Temperature and Corrosion-Resistant Window – Various Shaped Quartz Glass Plates
Introduction
Our high-temperature, corrosion-resistant quartz glass plates are precision-engineered for use as optical windows, protective covers, viewports, and substrate carriers in extreme environments. Made from ultra-pure fused silica (SiO₂ ≥ 99.99%), these plates offer outstanding thermal stability, optical transparency, and chemical inertness.
Unlike conventional glass, fused quartz retains its mechanical integrity and transparency even under prolonged exposure to high heat, corrosive chemicals, UV light, and plasma. Available in various shapes—including circular, square, rectangular, and custom geometries—these quartz plates are ideal for both demanding industrial environments and precision optical systems.
Applications
Quartz glass plates are widely used across industries requiring transparent, chemically inert, and heat-tolerant materials. Here are the most common application areas:
1. Vacuum and Furnace Viewports

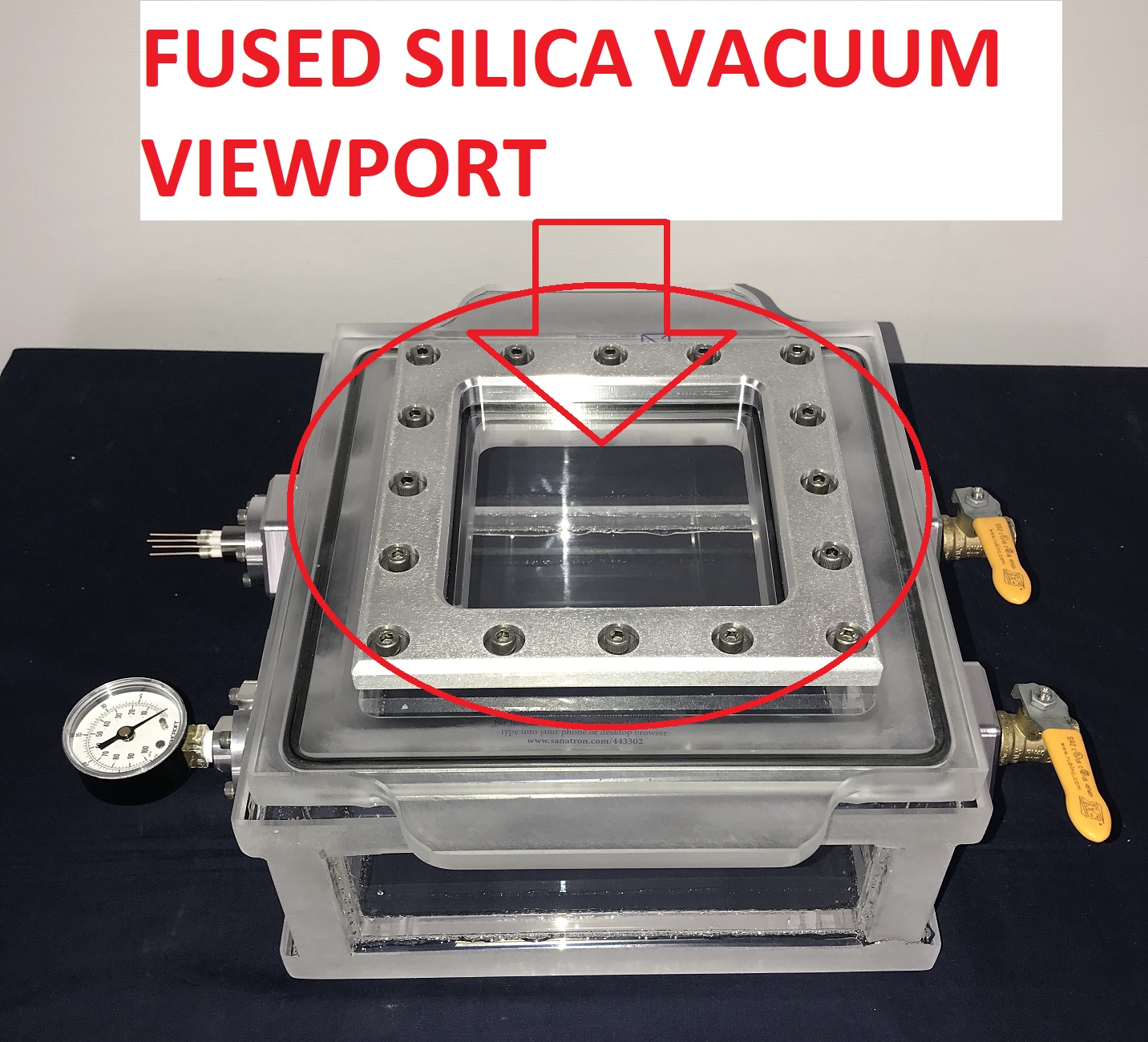

Quartz plates are used as observation windows in vacuum chambers and high-temperature furnaces, allowing visual or optical monitoring without compromising the sealed environment.

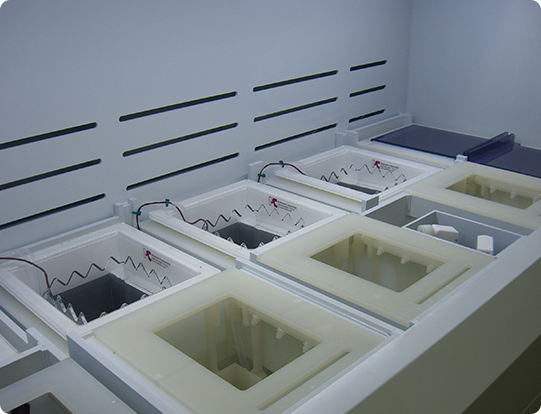

2. Semiconductor Processing
Used as cover plates, susceptor lids, and alignment windows in etching, deposition, and cleaning systems where chemical resistance and cleanliness are essential.
3. UV & IR Optical Systems

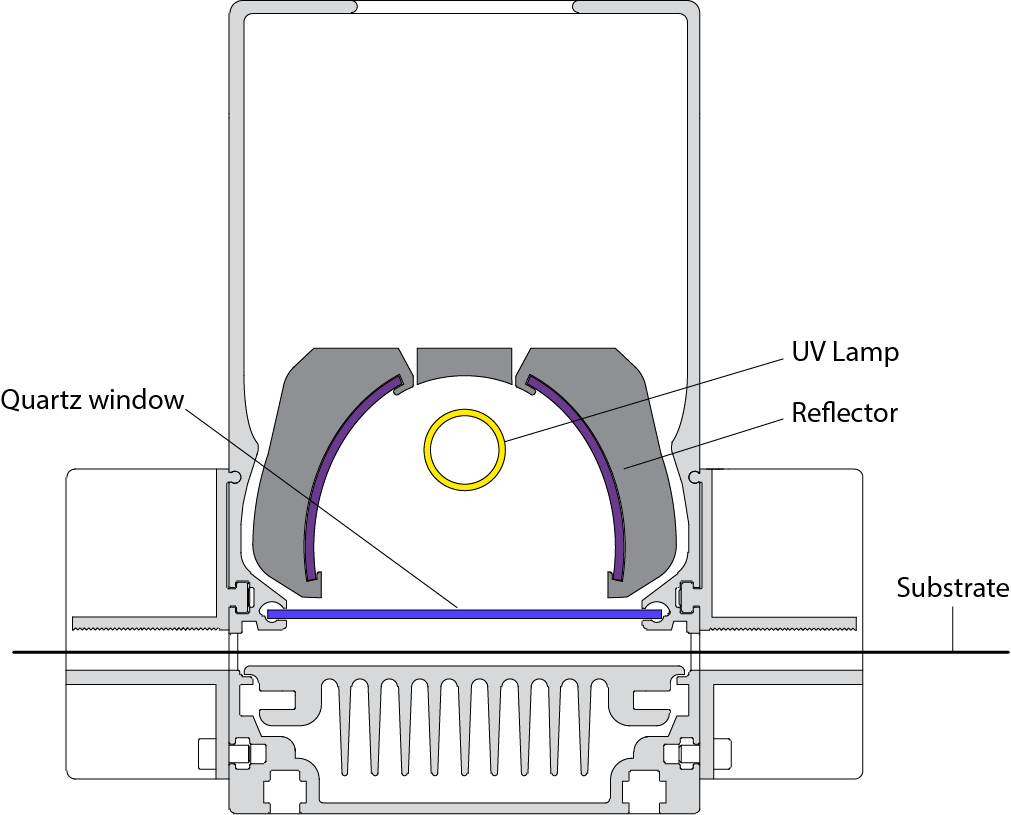

Thanks to their wide transmission range (200–3500 nm), quartz plates are used in UV curing machines, IR detectors, and spectrometers.
4. Laser and Optical Devices
Quartz plates serve as laser windows, beam splitters, or optical flats where low distortion and high laser damage threshold are crucial.
5. Chemical Reaction Monitoring
In aggressive environments such as chemical reactors or flow cells, quartz glass allows in-situ observation and spectral analysis of reactions.
Key Features
High Thermal Stability
- Continuous use at up to 1100°C
- Thermal shock resistance for rapid temperature changes
Chemical Inertness
- Excellent resistance to acids, bases, halogens, and organic solvents
- Non-reactive surface even under plasma or HF conditions
Wide Optical Transparency
- UV to IR transmission range
- Transmission >92% at visible wavelengths
- No discoloration or haze over time
Precision Shapes & Surface Quality

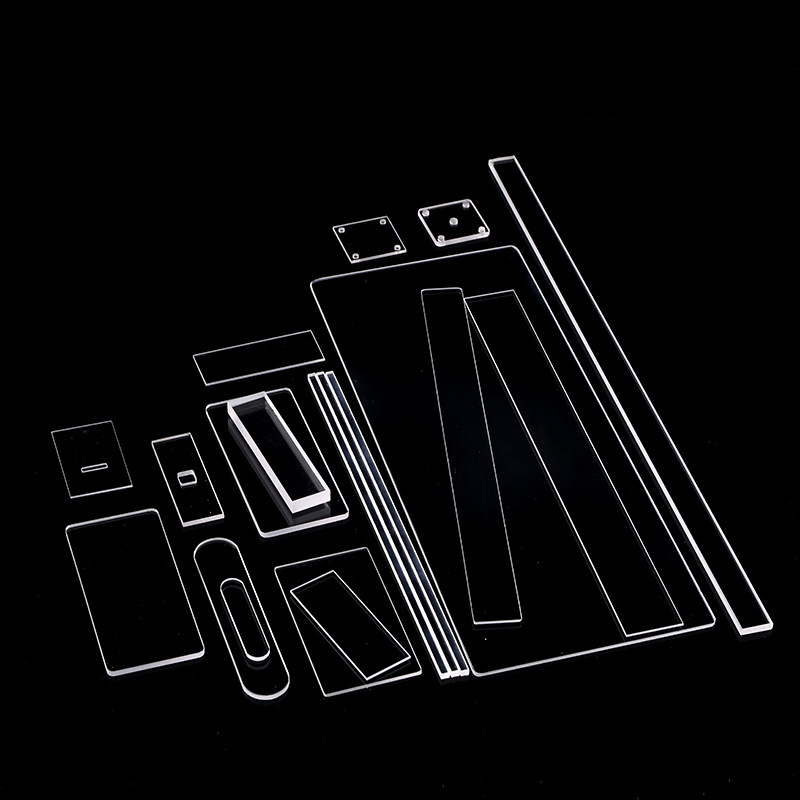

- Available in circular, square, rectangular, elliptical, or custom profiles
- Optical polishing: flatness up to λ/10, surface roughness <5 Å (optional)
- Anti-reflective, UV-enhanced, or IR coatings available on request
Mechanical Strength
- Hard surface (Mohs 5.5–6.5)
- Resistant to abrasion, pressure, and mechanical stress
- Suitable for vacuum, high-pressure, or high-vibration environments
Specifications
| Property | Value / Range |
| Material | Fused Quartz (SiO₂ ≥ 99.99%) |
| Transparency Range | 200 nm – 3500 nm |
| Thickness | 0.5 mm – 20 mm |
| Dimensions | Up to 600 mm × 600 mm; circular, square, custom |
| Tolerance | ±0.1 mm (standard), tighter on request |
| Surface Finish | Polished, Ground, Optical Grade |
| Flatness | Up to λ/10 |
| Hardness | Mohs 5.5–6.5, Knoop ~610 kg/mm² |
| Working Temperature | Continuous: 1100°C; Softening: ~1730°C |
| Coating Options | AR (anti-reflective), UV-enhanced, IR-pass |
| Thermal Expansion Coefficient | ~0.55 × 10⁻⁶ /K |
| Certification | RoHS |
Our Services
We are more than a quartz component supplier—we are a full-service partner dedicated to helping our clients develop advanced, reliable, and application-ready solutions. From rapid prototyping to volume production, we provide a complete set of value-added services tailored to your technical requirements.
Custom Fabrication & Precision Machining
- Shape & Size Customization: Round, square, oval, irregular profiles
- CNC Machining: Milling, drilling, slotting, beveling, threading
- Edge Treatments: Polished, fire-cut, chamfered, or safety edges
- Tight Tolerances: Optical flatness, parallelism, and angle precision
Surface Processing & Optical Finishing
- Polishing Grades: Up to optical grade (λ/10), low-surface roughness (<5 Å)
- Coating Services: AR, UV-enhanced, IR-pass, hydrophobic, anti-static
- Etching or Patterning: For sensor windows or microfluidic applications
Mass Production & OEM Solutions
- Batch Production: From 1 piece to 10,000+ pieces/month
- Tooling and Mold Development for custom formats
- Private Labeling & Branding: Packaging, labels, part marking for OEMs
- Global Logistics Support: Export-compliant packaging and fast shipping
Engineering Support & Technical Consulting
- Design Assistance: Material selection, tolerancing, and CAD review
- Rapid Prototyping: Samples ready within days
- Failure Analysis Support: For existing glass part problems
- Application Matching: Get the right quartz solution for your specific environment
Q&A
Q1: Can I order custom shapes or holes in the quartz plates?
Yes. We provide custom CNC machining, including drilled holes, slots, edge bevels, flanges, and complex contours according to your CAD drawing.
Q2: Are these plates suitable for laser applications?
Yes. Fused quartz has a high laser damage threshold and low birefringence, making it suitable for high-power laser windows, isolators, and beam splitters.
Q3: How are the plates cleaned and packaged?
Plates are ultrasonically cleaned, inspected under cleanroom conditions, and vacuum-sealed in PE bags or foam trays. Special anti-static or Class 100 packaging is available upon request.
Q4: Do these windows degrade under UV or high temperature?
No. Unlike regular glass, fused quartz does not degrade, yellow, or devitrify even after long-term exposure to UV radiation or high temperatures.
