​​6inch Heat-Resistant Transparent Monocrystalline Quartz Crystal Substrate For SAW Devices​​

  • 1
  • 2
  • 3

Brand Name : ZMSH

Model Number : 6 Inch Quartz Wafer

Certification : rohs

Place of Origin : CHINA

MOQ : 10

Price : by case

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-8weeks

Packaging Details : Package in 100-grade cleaning room

Diameter : 6 inch (150mm)

Thickness Tolerance : ±0.02mm

Total Thickness Variation : ≤10μm

Surface Roughness : ≤0.5nm Ra

Parallelism : ≤3μm

Resistivity : >10¹⁶ Ω·cm

Contact Now

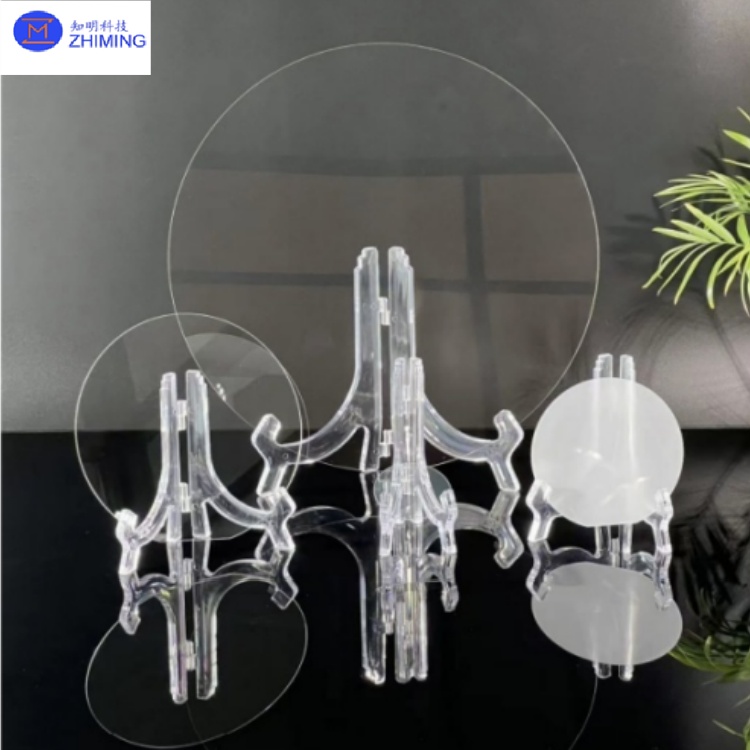

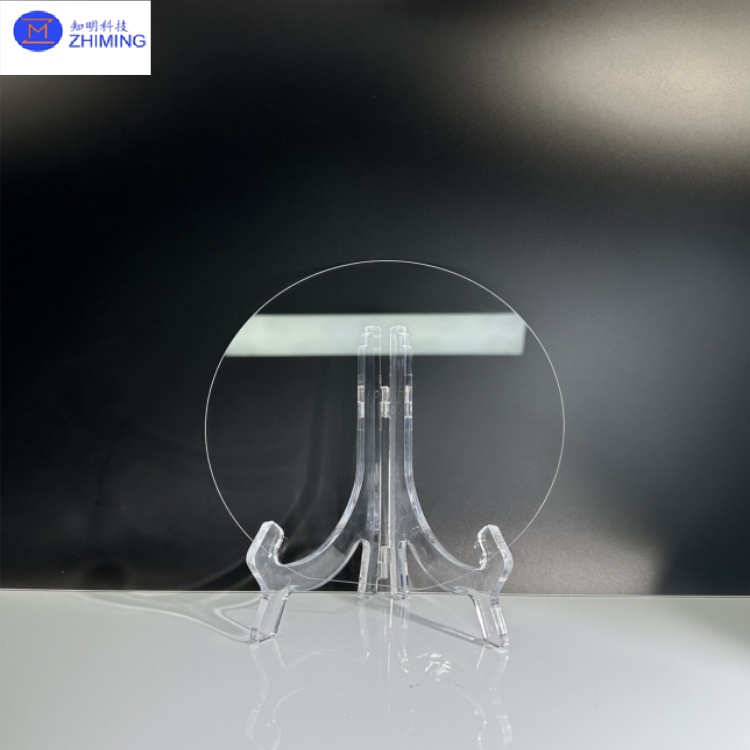

6 inch quartz wafer details

​​6inch Heat-Resistant Transparent Monocrystalline Quartz Crystal Substrate for SAW Devices​​

The 6-inch quartz wafer (150mm diameter) is fabricated from high-purity quartz glass (purity ≥99.999%) with thickness ranging from 50-500μm. Surface roughness is controlled to Ra ≤0.5nm through CMP (Chemical Mechanical Polishing). The manufacturing process includes: ​​

· Raw Material Purification​​: Extraction of electronic-grade silicon from quartz sand via chlorination and reduction processes, achieving 99.9999% purity. ​​

· Single-Crystal Growth​​: Cultivation of single-crystal silicon rods using the Czochralski (CZ) method, with defect density <1 defect/cm². ​​

· Cutting and Processing​​: Slicing silicon rods into 150mm wafers via multi-wire sawing, followed by double-sided polishing and laser etching to ensure thickness tolerance ≤±15μm.


Parameter for 6inch quartz wafer

Parameter Specification
Diameter 6 inch (150mm)
Thickness Range 0.5mm~3.0mm
Thickness Tolerance ±0.02mm
Total Thickness Variation ≤10μm
Surface Roughness (Polished) ≤0.5nm Ra
Parallelism ≤3μm
CTE (20-300°C) 0.55×10⁻⁶/°C
Transmittance @193nm >92%
Resistivity >10¹⁶ Ω·cm
Vacuum Compatibility 10⁻¹⁰ Torr
Flexural Strength (Strengthened) 500-700MPa


Core Characteristics and Advantages​​ of 6inch quartz wafer

​​6inch Heat-Resistant Transparent Monocrystalline Quartz Crystal Substrate For SAW Devices​​

The 6-inch quartz wafer is a circular thin film made of high-purity quartz material, widely used in semiconductor manufacturing, optoelectronics, and precision optics. Key features include:

· ​​High Purity and Thermal Resistance​​: Quartz glass purity ≥99.999%, softening point ~1730°C, short-term tolerance up to 1450°C.

​​· Low Thermal Expansion​​: Thermal expansion coefficient 0.5×10⁻⁶/°C (25-300°C), capable of withstanding thermal shock (ΔT ≥800°C).

​​· Chemical Stability​​: Resists corrosion from all acids except hydrofluoric acid, with corrosion resistance 30× higher than ceramics and 150× higher than stainless steel.

​​· Optical Performance​​: High transmittance in the ultraviolet to near-infrared spectrum (visible light >93%, near-infrared >95%).

​​· Mechanical Strength​​: Mohs hardness of 7, compressive strength superior to standard glass.


​​6inch Heat-Resistant Transparent Monocrystalline Quartz Crystal Substrate For SAW Devices​​

Applicationsof 6inch quartz wafer

1. ​​Semiconductor Manufacturing​​: Used in diodes, transistors, and MOSFETs, supporting automotive electronics and power semiconductors.

​​2. Optoelectronics​​: Serves as substrates for optical fibers, laser devices, and waveguides in 5G networks and data centers.

3. ​​Precision Optics​​: Applied in infrared imaging systems, laser optics, and high-transmittance lenses.

​​4. Sensors and Instruments​​: Core components in MEMS sensors and medical diagnostic equipment.

5. ​​Aerospace​​: High-temperature optical windows and heat-resistant components for spacecraft.

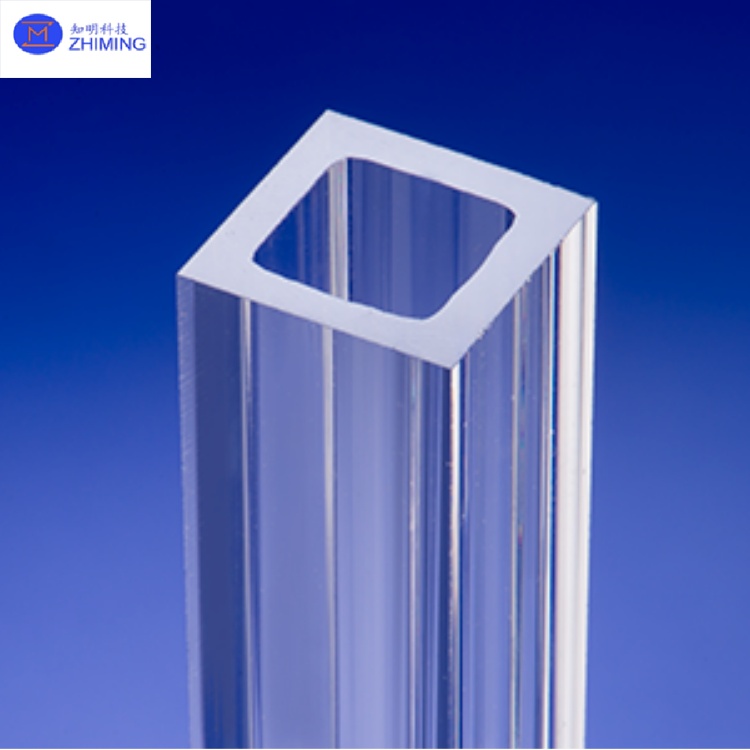

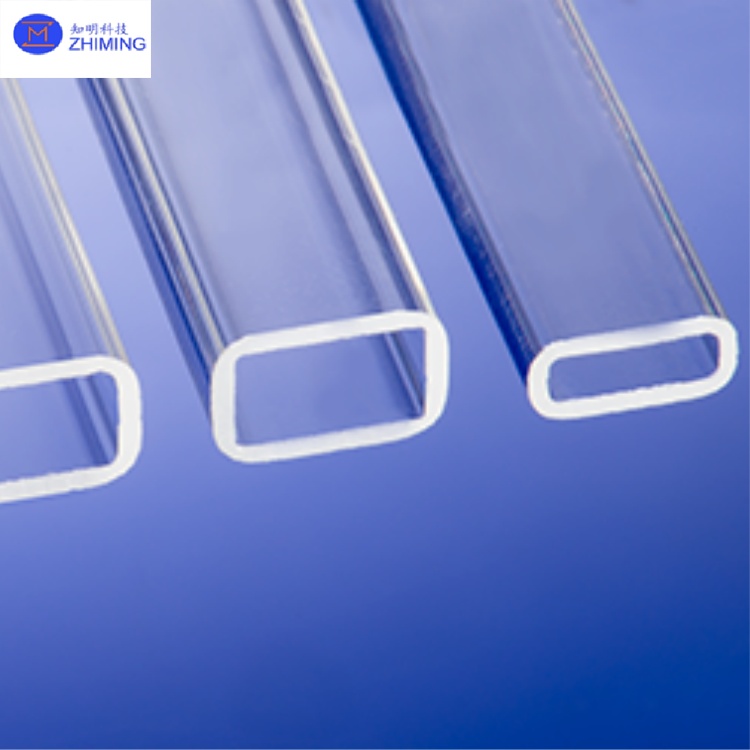

Quartz Tube Introduction

Quartz tubes are high-purity quartz glass fabricated into tubular structures, widely used in semiconductor diffusion/oxidation processes and photovoltaic equipment. Our services include:

· ​​Custom Processing​​: Inner diameters (5-50mm), lengths (100-1000mm), and wall thicknesses (0.5-3mm). Complex geometries (bent, multi-chamber tubes) are supported.

· ​​Technical Advantages​​: Operates at 1100°C long-term, low hydroxyl content (<1ppm), and high contamination resistance, meeting semiconductor-grade cleanliness requirements.

​​6inch Heat-Resistant Transparent Monocrystalline Quartz Crystal Substrate For SAW Devices​​​​6inch Heat-Resistant Transparent Monocrystalline Quartz Crystal Substrate For SAW Devices​​


FAQ of 6inch quartz wafer

1. Q: ​​What are the primary applications of 6-inch quartz wafers?​​ ​​

A:​​ 6-inch quartz wafers are widely used in semiconductor manufacturing (e.g., diodes, MOSFETs), optoelectronics (fiber optics, lasers), and precision sensors due to their high thermal stability and optical transparency .

2. Q: ​​What challenges exist in 6-inch quartz wafer production?​​ ​​

A:​​ Key challenges include maintaining ultra-high purity (>99.999% SiO₂), minimizing defects during crystal growth, and ensuring uniformity in slicing/polishing processes .

Tags: #6 Inch Quartz Substrate, #Customized, #Fused Silica Plates, #SiO₂ Crystal, #Quartz wafers, #JGS1/JGS2 Grade, # High-Purity, #Fused Silica Optical Components, #Quartz Glass Plate, #Diameter 150mm​​, #Quartz Crystal Glass Wafer, #5N Purity SiO₂, #Heat-Resistant, #Transparent, #Monocrystalline Quartz Crystal Substrate, #SAW Devices​​
