Corrosion-Resistant Quartz Glass | High Light Transmittance Window | Custom-Shaped Quartz Glass
Fused quartz glass has become an essential material across industries where extreme environmental conditions and high optical precision are demanded. Our corrosion-resistant quartz glass products are manufactured using high-purity silicon dioxide (SiO₂), processed through electric fusion, and carefully shaped into both standard and custom geometries. These glass components exhibit excellent resistance to thermal shock, exceptional optical clarity, and outstanding chemical inertness, making them ideal for both harsh industrial environments and high-precision optical systems.
The high light transmittance window grade quartz glass offered here combines durability with exceptional optical performance. Whether you require planar substrates, sight glasses, lenses, tubes, or complex custom components, our quartz glass solutions are tailored to meet diverse specifications.
Applications of Quartz glasses
Our corrosion-resistant, high-transmittance quartz glass finds applications in a wide range of sectors due to its physical, chemical, and optical robustness:
1. Semiconductor Industry
Photolithography equipment windows
Plasma etching chambers
Wafer carriers and boats
2. Optoelectronics and Photonics
High-intensity lamp envelopes
Optical windows and lenses
Laser cavity component
3. Chemical Processing
Corrosive fluid sight glasses
Reactor viewports
Acid-resistant labware
4. Aerospace and Defense
High-temperature IR-transparent windows
Sensor housings
UV monitoring systems
5. Solar and Renewable Energy
Quartz substrates for photovoltaic cells
Concentrated solar power (CSP) systems

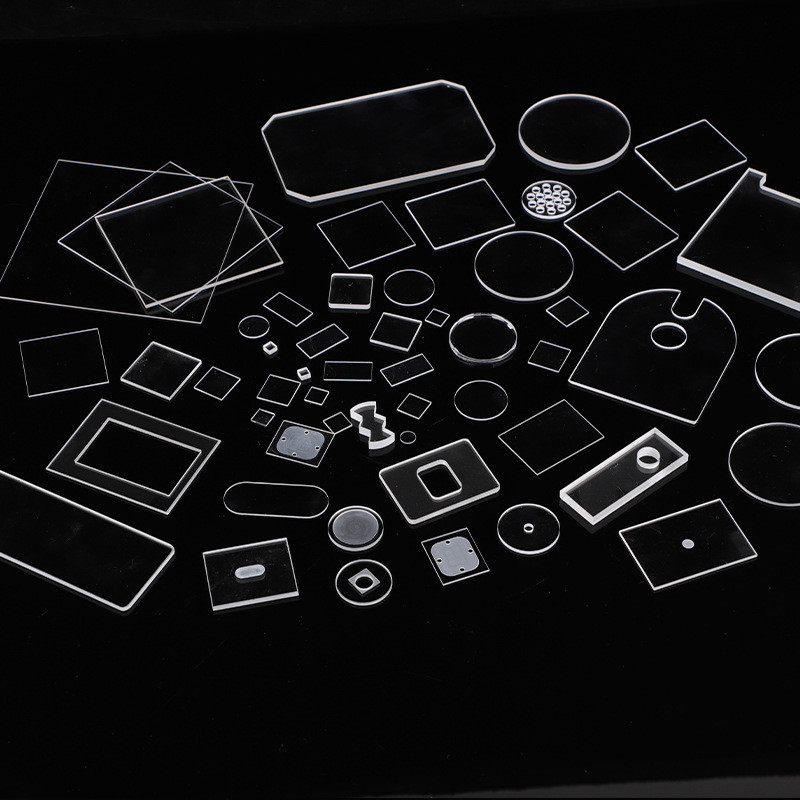

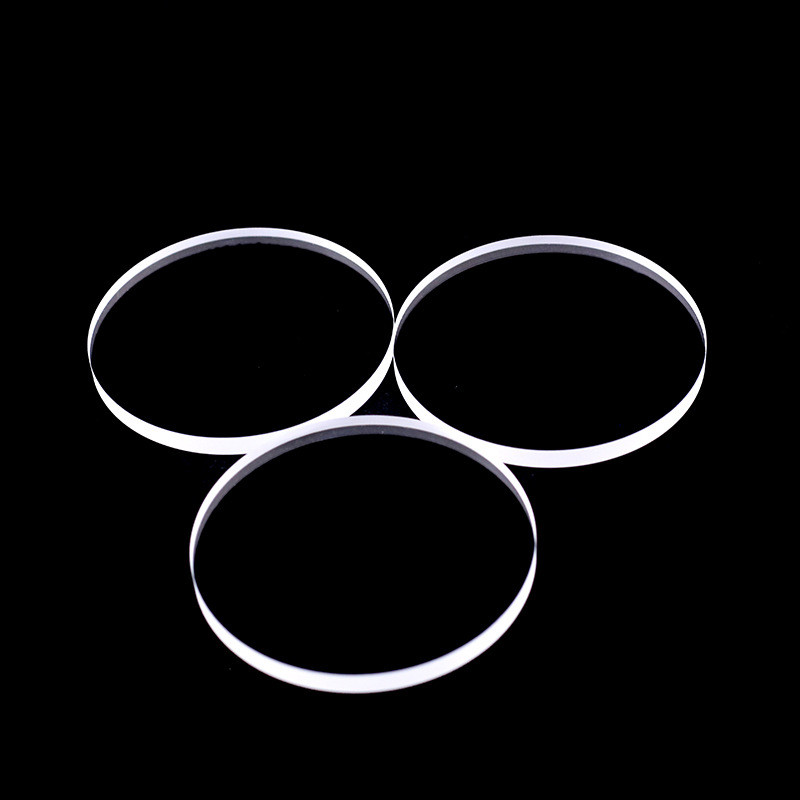

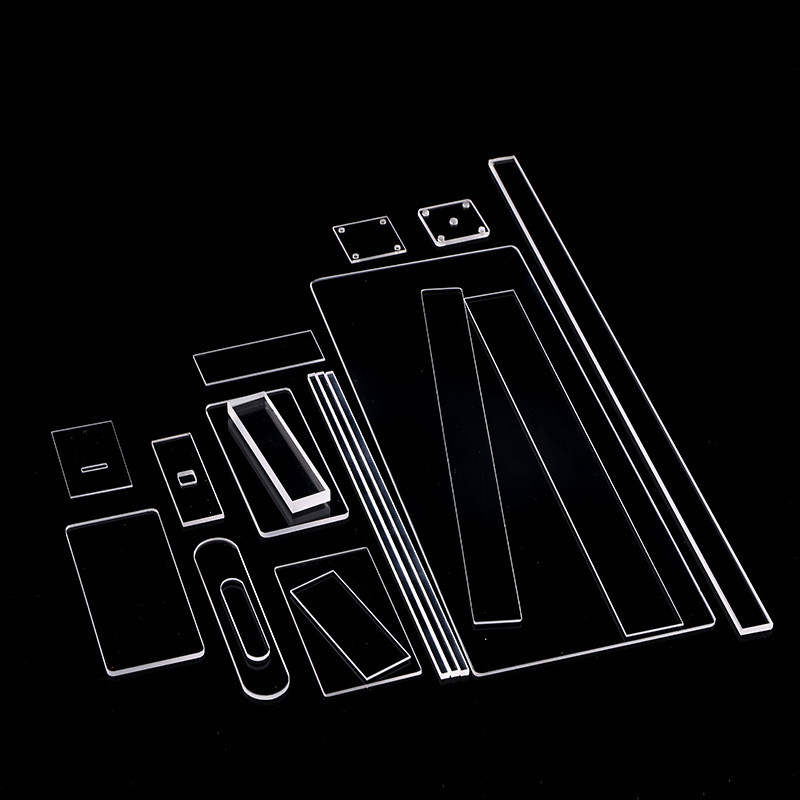

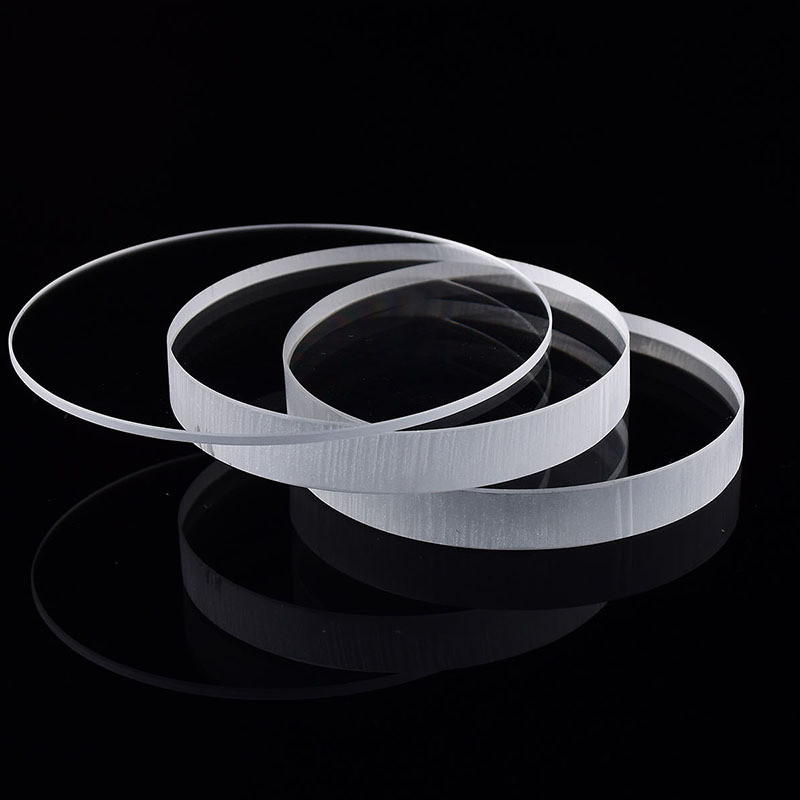

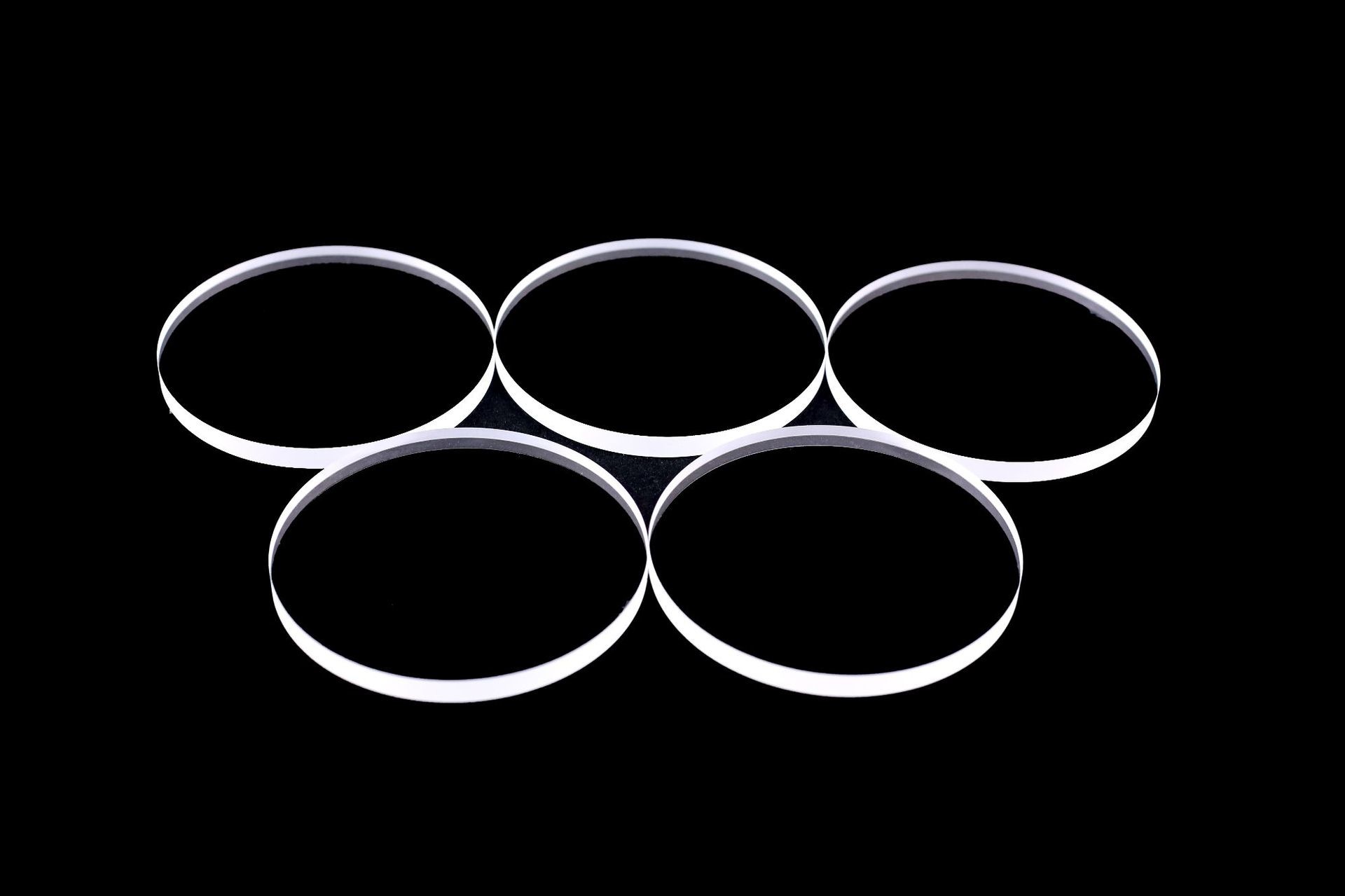

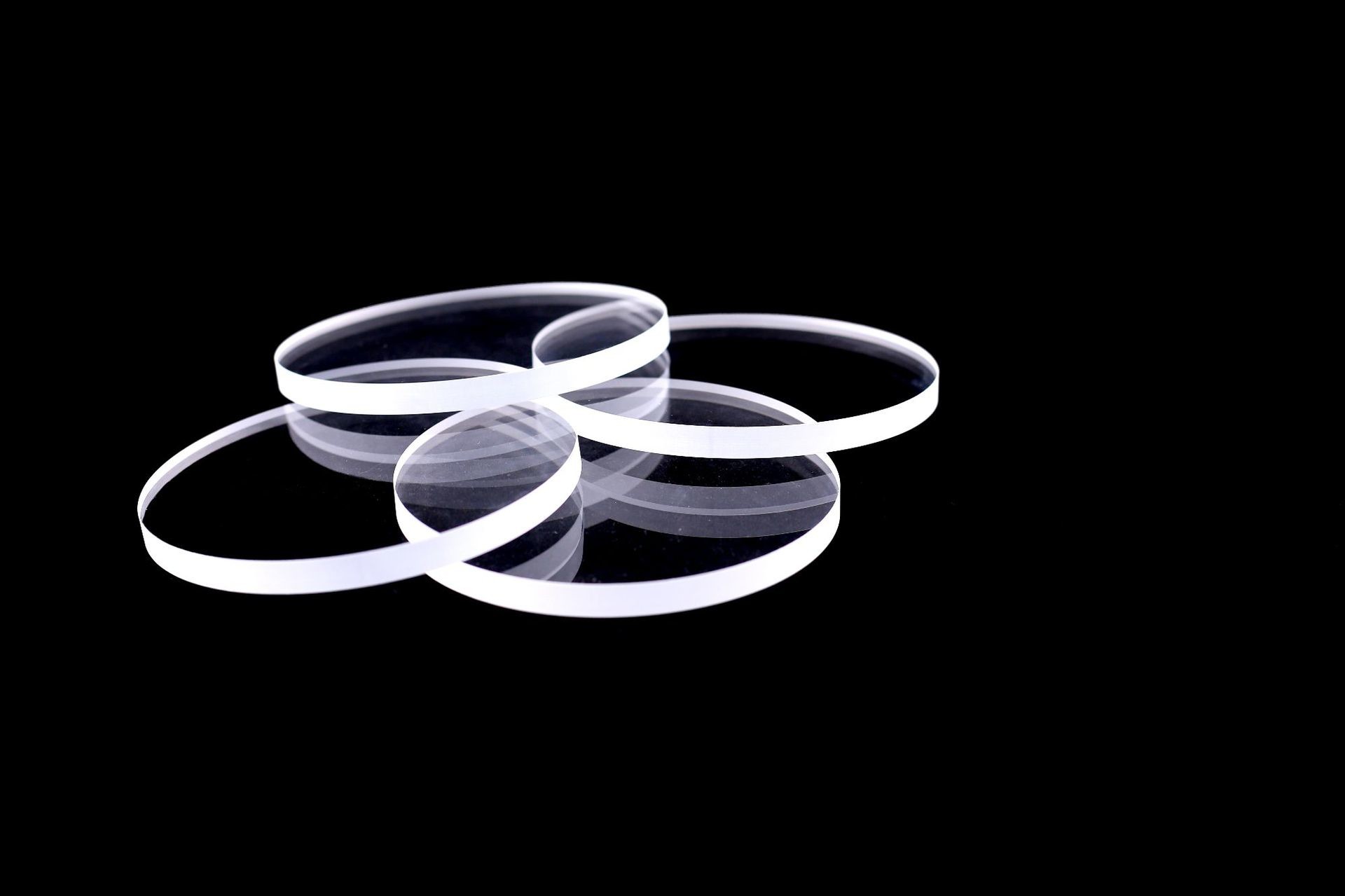

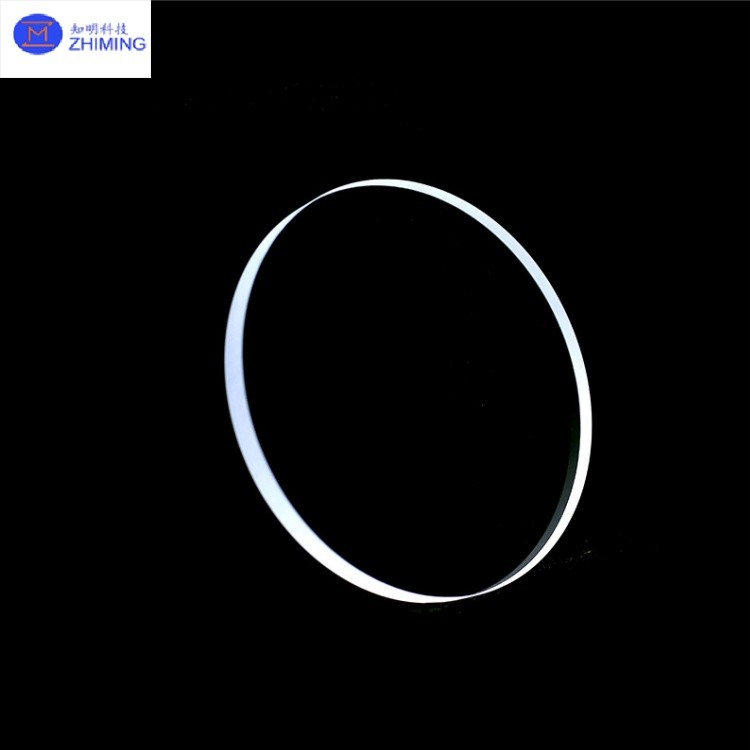

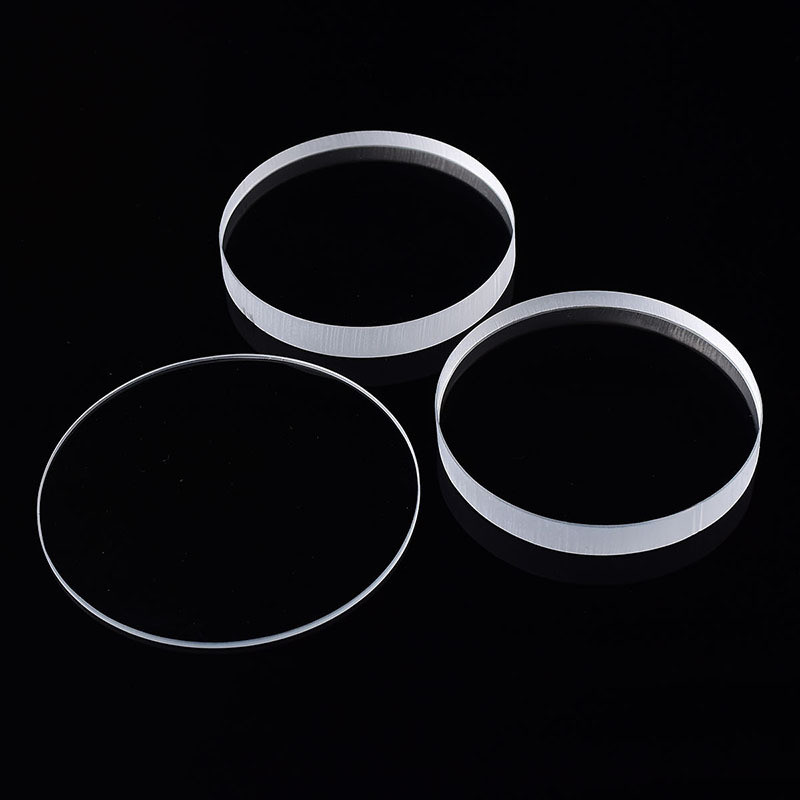

Quartz glasses products images
Specifications
| Property | Value / Range |
| Material | Fused Quartz (SiO₂ ≥ 99.99%) |
| Transparency Range | 200 nm – 3,500 nm |
| Refractive Index (at 589.3 nm) | ~1.458 |
| Thermal Expansion Coefficient | ~0.55 × 10⁻⁶ /K |
| Softening Point | ~1,730°C |
| Working Temperature (continuous) | Up to 1,100°C |
| Transmission (at 600 nm) | >92% |
| Density | ~2.2 g/cm³ |
| Mohs Hardness | 5.5 – 6.5 |
| Vickers Hardness | ~570 – 1100 kg/mm² |
| Knoop Hardness | ~610 kg/mm² |
| Available Shapes | Window, Rod, Tube, Dome, Lens, Custom |
| Surface Finish Options | Ground, Polished, Optical Grade |
| Tolerance (Typical) | ±0.05 mm or customized per drawing |
Custom tolerances and coatings (AR/UV/IR) available upon request.
Q&A
Q1: What makes this quartz glass corrosion-resistant?
The extreme chemical purity and network structure of fused quartz make it highly inert to almost all acids and bases, excluding hydrofluoric acid. It outperforms borosilicate and soda-lime glass in chemical resistance, making it ideal for harsh environments.
Q2: Can I request a custom shape or dimension?
Absolutely. We offer custom machining services, including CNC shaping, waterjet cutting, ultrasonic drilling, and thermal forming. Simply submit your drawing or 3D CAD model for a quotation.
Q3: Is this quartz glass suitable for high-temperature applications?
Yes, it can continuously withstand temperatures up to 1,100°C and short-term exposure up to 1,250°C, with excellent resistance to thermal shock.
Q4: Does this quartz glass support UV transmission?
Yes. Our high-purity fused quartz provides excellent transmission in the UV range down to 200 nm, making it ideal for UV curing systems, UV monitoring windows, and spectroscopy.
Q5: What are the standard lead times?
For in-stock standard shapes, delivery can be made within 3–7 working days. Custom parts typically require 2–4 weeks, depending on complexity and volume.
