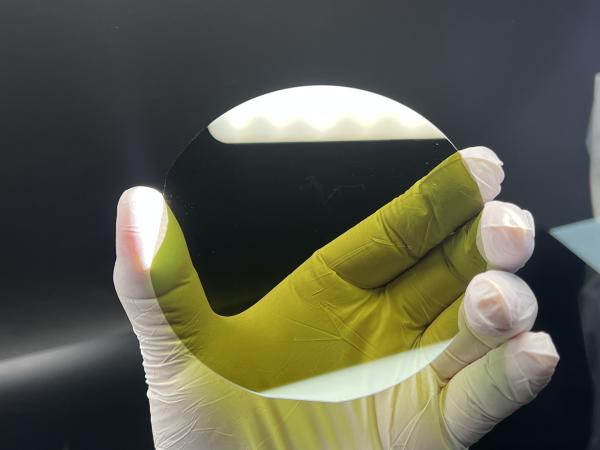

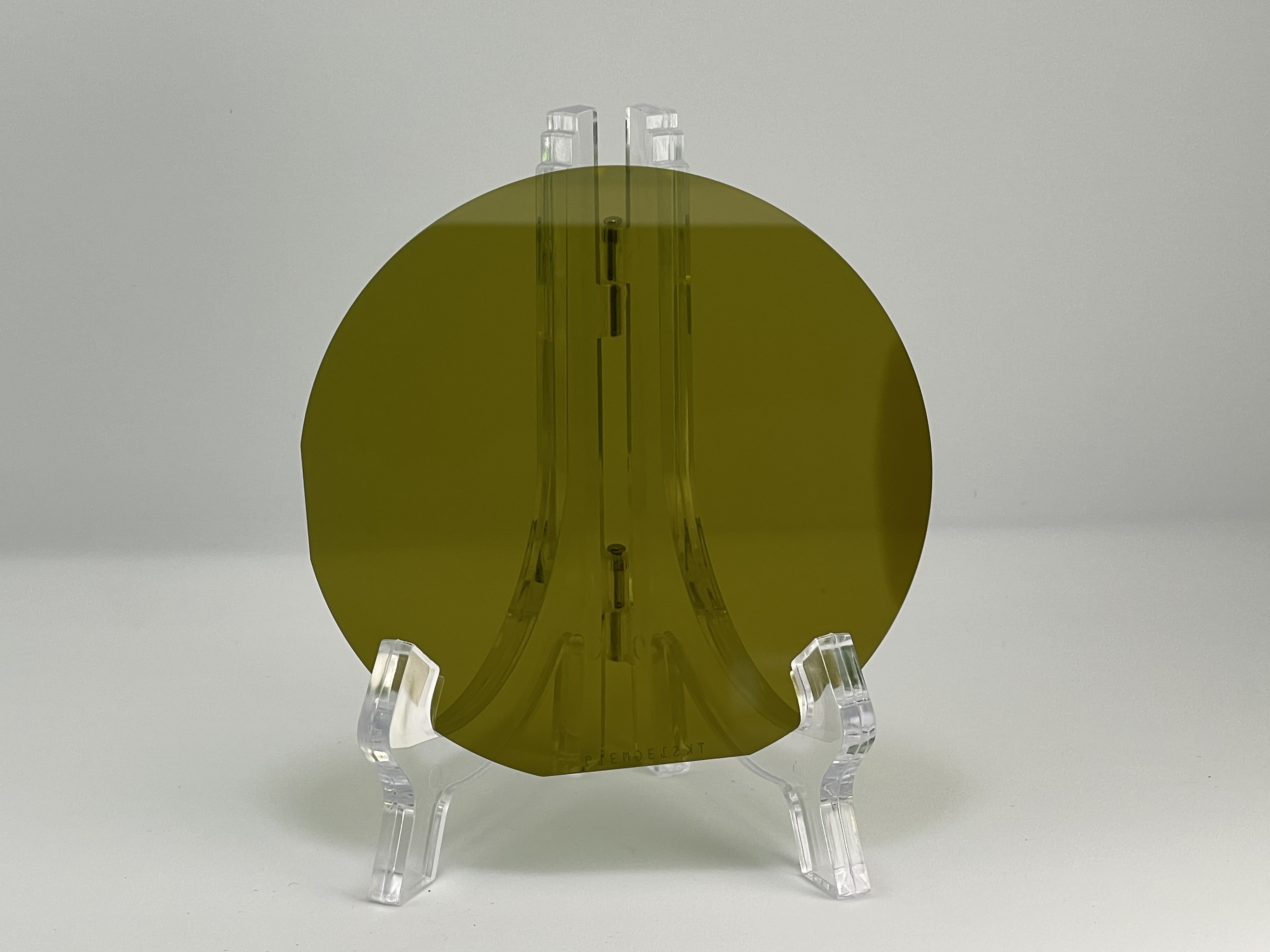

3'' 4'' 350um 500um SSP DSP 4H- 6H- Research Dummy Grade SIC Epitaxial Substrates
Features of SIC Wafers:
Wide-band gap silicon carbide semiconductors are used to control and switch high-power electrical equipment. They offer several advantages over traditional silicon devices, including higher operating temperatures, higher breakdown voltages, faster switching speeds, lower on-off resistance, and higher durability. SiC devices are an innovative option to improve system efficiency, reduce design size and withstand higher operating temperatures for industrial, transportation, automotive, medical, aerospace, defense and communications products.
Main features:
- Extremely low switching losses increase system efficiency
- High power density reduces size and weight
- Three times the thermal conductivity of silicon
- Reduce sink requirements for a smaller footprint and lighter weight
- High temperature operation increases reliability and increases power density
Specifications:
| | Items | Unit | Production | Research | Dummy |
| 1. Crystal Parameters |
| 1.1 | Polytype | -- | 4H | 4H | 4H |
| 1.2 | Surface orientation on-axis | -- | <0001> | <0001> | <0001> |
| 1.3 | Surface orientation off-axis | ° | 0± 0.2° | 0± 0.2° | 0± 0.2° |
| 2. Electrical Parameters |
| 2.1 | Type | -- | HPSI | HPSI | HPSI |
| 2.2 | Resistivity | ohm·cm | ≥1E9ohm·cm | 100% area＞1E5ohm·cm | 70% area＞1E5ohm·cm |
| 3. Mechanical Parameters |
| 3.1 | Diameter | mm | 99.5~100mm | 99.5~100mm | 99.5~100mm |
| 3.2 | Thickness | μm | 500±25μm | 500±25μm | 500±25μm |
| 3.3 | Primary flat orientation | ° | [1-100]± 5° | [1-100]± 5° | [1-100]± 5° |
| 3.4 | Primary flat length | mm | 32.5± 1.5mm | 32.5± 1.5mm | 32.5± 1.5mm |
| 3.7 | TTV | μm | ≤5μm | ≤10μm | ≤20μm |
| 3.8 | LTV | μm | ≤2μm(5mm*5mm) | ≤5μm(5mm*5mm) | NA |
| 3.9 | Bow | μm | -15μm~15μm | -35μm~35μm | -45μm~45μm |
| 3.10 | Warp | μm | ≤20μm | ≤45μm | ≤50μm |
Company Introduction:

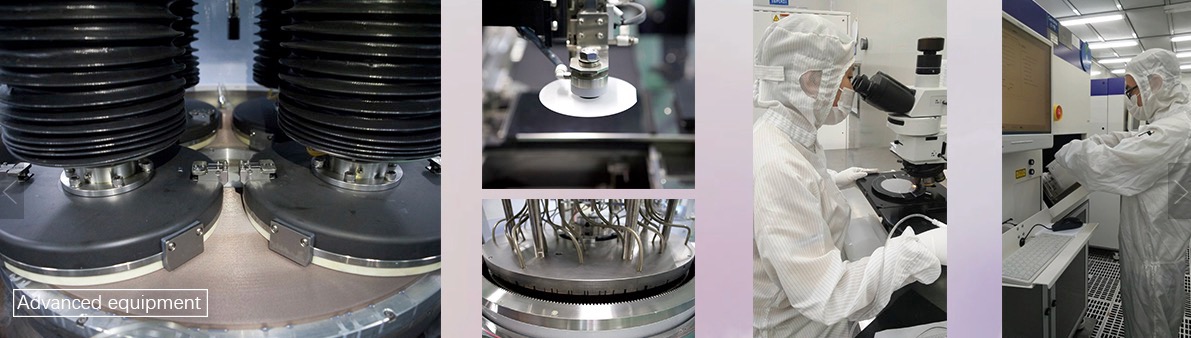

Shanghai Famous Trade Co., Ltd. is located in Shanghai, the best city in China, and our factory was established in Wuxi City in 2014. We specialize in processing a wide range of materials into wafers, substrates and custom optical glass components. The components are widely used in many fields such as electronics, optics and optoelectronics. We also work closely with many universities, research institutes and companies at home and abroad to provide customized products and services for their research and development projects. Our vision is to maintain a good relationship with all our customers through a good reputation. Our Wuxi fine crystal factory has a strong production capacity, with top production lines and excellent employees, mainly researchers and technicians from famous semiconductor wafer companies in China, they have rich experience and creativity and methods for the production and design of various optical lenses and wafer products.
Service Provided:
Thanks to our high quality products and excellent customer service, we have established a sales network covering the world. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We look forward to establishing successful business relationships with new customers around the world in the near future. In addition to the production of optical lenses and semi-wafers according to customer drawings, we can also provide optical design and OEM services. And our after-sales service is very thoughtful, you will feel at ease here.
Other Products:
SIC Ingot:
FAQ:
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 5pcs up.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Freight is in accordance with the actual settlement.
Q: What's the delivery time?
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.as like 4inch 0.35mm,0.5mm polished wafer.
Q: How to pay?
A:50％deposit, left before delivery T/T,
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical
components based on your needs.
